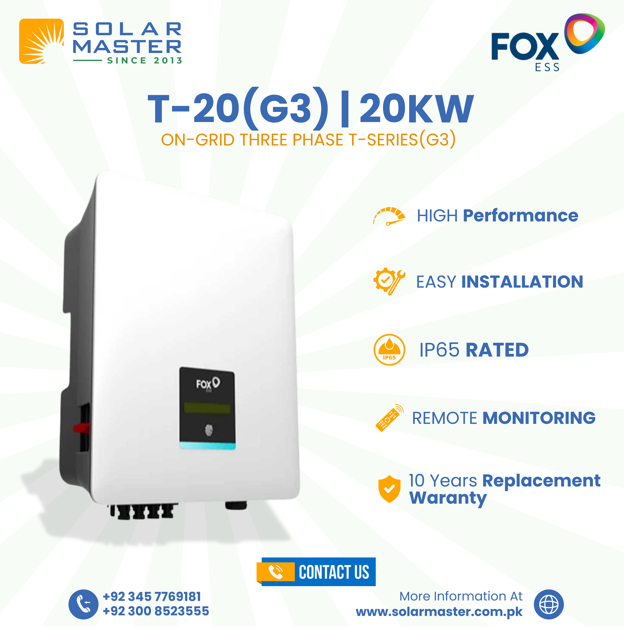

20KW On Grid Solar Inverter

Original price was: ₨ 290,000.Current price is: ₨ 280,000.

Key Features

  • 10-year replacement warranty for peace of mind
  • 20KW rated output power for large-scale residential and commercial systems
  • 98.6% max. efficiency with 97.8% Euro efficiency
  • Dual MPPT design for better energy tracking and flexibility
  • Wide MPPT voltage range (140V – 1000V)
  • Max. input voltage up to 1100V
  • IP65 rated for reliable outdoor performance



Category:

Description

If you’re looking for a reliable, high-performing inverter for your commercial or industrial solar setup, the T Series G3 20KW On-Grid Inverter is built to deliver consistent performance, safety, and long-term value. This three-phase inverter is designed to handle demanding solar applications while offering modern features like smart monitoring, high conversion efficiency, and built-in protection systems.

Designed for Performance

The inverter supports a maximum input power of 30,000W and operates efficiently with a wide MPPT voltage range (140V–1000V). It features two independent MPPTs and supports 2+2 string configurations, giving flexibility for larger PV arrays. With maximum efficiency reaching 98.6%, you get more usable energy from your solar panels.

Tough, Reliable, and Outdoor-Ready

Built for outdoor installations, the inverter comes with an IP65 rating, protecting it against dust, rain, and humidity. Its transformerless design reduces weight and increases reliability. Cooling is managed without a fan, helping keep the system quiet and low-maintenance.

Easy Setup and Remote Access

Thanks to its compact size and intuitive setup, installation is straightforward. Once installed, you can monitor performance using Wi-Fi, 4G (optional), or the mobile app. The inverter supports various communication methods including RS485, energy meters, and remote emergency stop.

Key Technical Specs

  • Max Input Power: 30,000W

  • Max Input Voltage: 1100V

  • MPPT Range: 140V – 1000V

  • Max Output Power: 20,000W

  • Max Output Current: 31.9A

  • Number of MPPTs: 2

  • String Configuration: 2+2

  • Efficiency: Up to 98.6%

  • Cooling Method: Natural convection

  • Weight: Approx. 23kg

  • Noise Level: Below 30dB

  • Operating Temp Range: -25°C to 60°C

  • Protection Level: IP65
