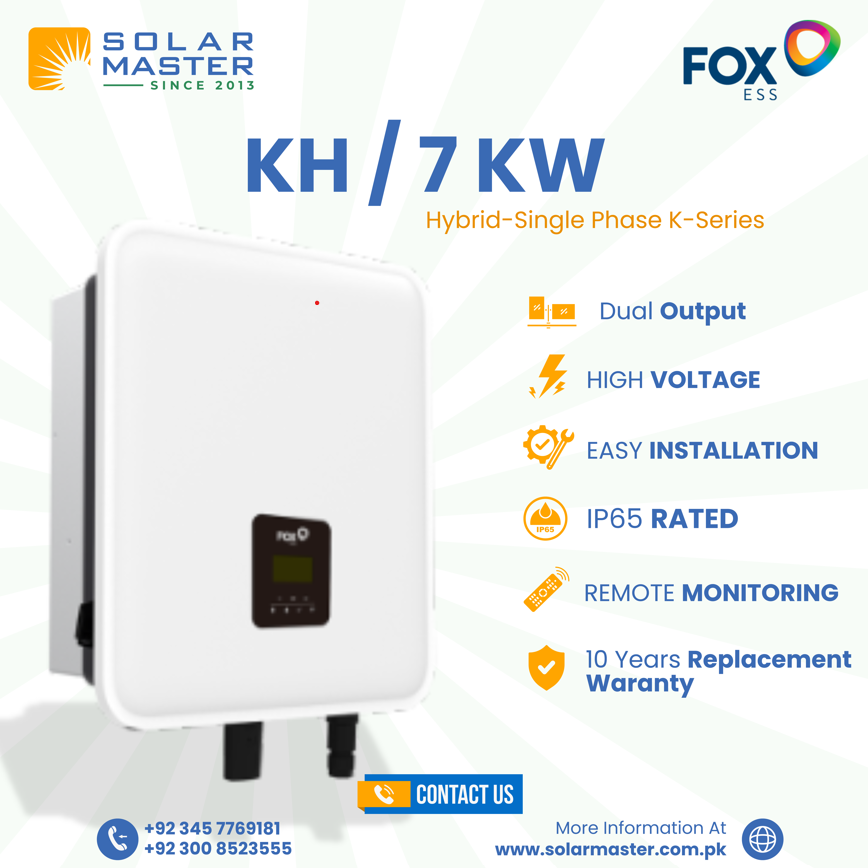

Fox Hybrid 7KW Solar Inverter – Single Phase K-Series

Description

The Fox Hybrid 7KW Solar Inverter from the K-Series is a high-performance, single-phase hybrid inverter built for modern residential and small-scale commercial solar systems. Designed with advanced energy management features and high-voltage lithium-ion battery compatibility, this inverter offers seamless integration, reliable power backup, and intelligent monitoring for efficient solar energy utilization.

Product Highlights

High-Voltage Lithium Battery Support
The inverter supports lithium-ion batteries with a voltage range of 85V to 480V and a recommended operating voltage of 300V. With a maximum charge and discharge current of 50A, it delivers stable and efficient energy storage performance.

Dual MPPT Technology
Equipped with dual Maximum Power Point Trackers (MPPTs), the Fox inverter maximizes solar panel efficiency across varying sunlight conditions. Each tracker can manage individual panel strings for optimized energy harvest.

Emergency Power Supply (EPS)
In the event of a power outage, the inverter’s EPS functionality ensures uninterrupted power with a rapid switch time of under 20 milliseconds. It supports a maximum EPS output of 6000VA, making it suitable for critical household or business loads.

Remote Monitoring and Smart Communication
The inverter offers multiple communication interfaces including CAN, RS485, USB, and optional Wi-Fi or 4G connectivity. This enables remote system monitoring, firmware updates, and detailed performance insights through a user-friendly platform.

Durable and Weatherproof Design
With an IP65-rated enclosure, the Fox Hybrid 7KW is built for both indoor and outdoor installations. It operates within a wide temperature range of -25°C to +60°C and maintains performance in humid or dusty environments.

Safe and Reliable Operation
Multiple layers of protection are integrated, including anti-islanding, over-current, reverse polarity, surge protection, insulation monitoring, and temperature safeguards. The system is compliant with leading international safety and EMC standards.

Efficient and Quiet Performance
The inverter uses natural convection for cooling, ensuring silent operation with typical noise levels under 30 dB. It boasts a maximum efficiency of 97.8%, MPPT efficiency of 99.9%, and battery charge/discharge efficiencies up to 98.5%.
